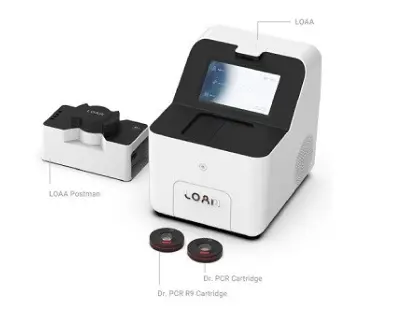

LOAA Analyzer 2-Color Real-Time Digital PCR System

The LOAA Analyzer 2-Color Real-Time Digital PCR System is a compact, high-precision instrument designed for absolute quantification of nucleic acids. Utilizing CMOS photo sensor technology, it partitions samples into 20,163 individual wells, allowing for real-time monitoring of PCR amplification. This system offers unparalleled sensitivity and accuracy, making it ideal for applications such as gene expression analysis, copy number variation detection, and liquid biopsy diagnostics.

• Brand: OPTOLANE Technologies
• Model: LOAA Analyzer (On-Point)
• Technology: Lab On An Array (LOAA) Digital PCR
• Detection Channels: 2-Color Fluorescence (FAM, CAL Fluor® Red 610, Chamel610, FAM-Cy®5)
• Sample Throughput: 1 sample per test
• Cartridge Capacity: 20,163 wells
• Display: 5.5" Full HD Touchscreen
• Connectivity: Wi-Fi, USB, Ethernet
• Weight: 3.2 kg
• Dimensions: 206 × 250 × 240 mm
• Certifications: CE-IVD, FDA Listed
• Intended Use: In vitro diagnostic (IVD) medical device for gene amplification and analysis
